Model 560i

Model 560i
Model 560i

Phone Freedom

Go for the simplicity of analog phones or the line appearances and advanced features of IP phones. Or use both. And, unlike most phone systems, FortiVoice SMB systems work with any standard analog phone and selected IP phones. Not sure which kind of phone is right for you? Read more about analog phones and IP phones.

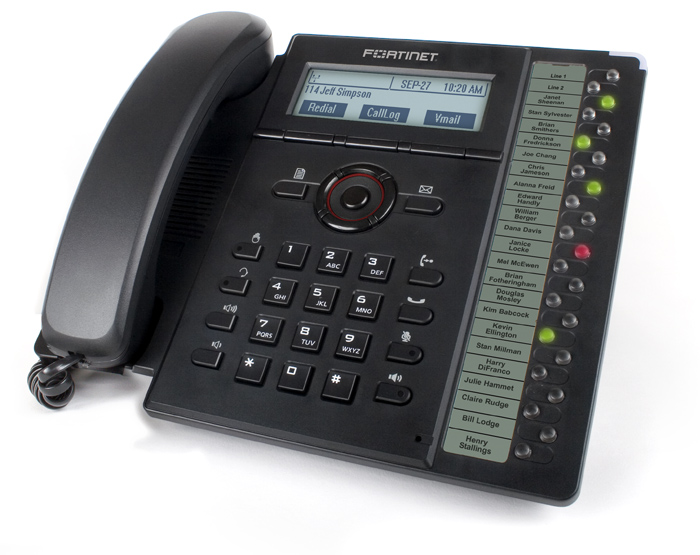

FortiFone FON-560i IP Phone

The FON-560i is a premium phone for power users. This phone can be custom tailored with 22 programmable, multicolored LED appearance keys, and optionally expands up to 46* for attendants. And for unprecedented wireless flexibility, add the optional Bluetooth® module. It’s the most sophisticated FortiFone telephone.

 * with two optional FF-50e expansion modules.

FF-50e Expansion Module

Adds 12 programmable appearance keys to the FON-560i. Maximum two per phone.

FF-65B Bluetooth®Module

Use Bluetooth headsets with this phone.

Features

  • Two 10/100/1000 Mbps Ethernet interfaces minimize LAN drops per desk.
  • PoE support (802.3af PD Class 2) eliminates the requirement of a power adapter.
  • Auto detection and provisioning for fast and easy setup.
  • 22 programmable multicolored LED programmable appearance keys (expandable to 46 with optional expansion module) provide maximum flexibility for each user.
  • Dedicated headset support for use with any amplified headset with an RJ-22 connection.
  • Multilingual support (English, Spanish, French).
  • Adjustable angle and display contrast.
  • Works with FortiVoice and TalkSwitch VSX systems.

Specs

  • Auto-discovery of FortiVoice system on LAN
  • Ten dedicated feature keys
  • 22 line/extension/queue appearance keys
  • Full duplex speakerphone
  • Dedicated RJ22 headset jack
  • Dedicated headset button
  • 4 x 32 character LCD display

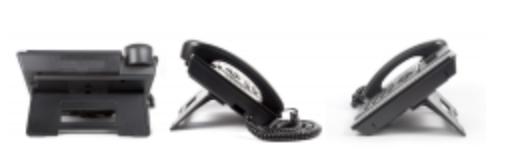

  • Adjustable angle: 30° or 55°
  • Adjustable display contrast
  • Message waiting lamp and counter
  • Power over ethernet (802.3af PD Class 2)
  • Power via included power supply
  • Two 10/100/1000 Ethernet ports
  • QoS 802.1p/q, ToS, Diffserv
  • NAT traversal support
  • DHCP client
  • SNTP client
  • SIP (RFC 3261)
  • G.711 µ-law/a-law, G.729a codec
  • Multilingual (English, Spanish, French)
  • Approvals: FCC Part 15, ICES-003, CE, RoHS
  • Size: 5.08″ x 9.25″ x 8.11″, 129mm x 235mm x 206mm
  • Weight: 2.1 lbs, 982g

Literature

FortiFone IP Telephones

FortiFone Comparative Phone Matrix
